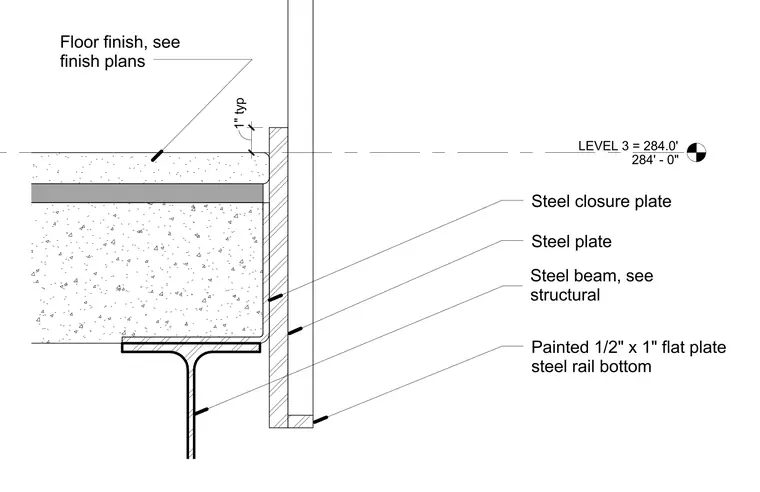

A painted half-inch by one-inch flat plate steel rail bottom connects to a steel beam sized per structural drawings. A steel plate and steel closure plate seal the edge alongside a concrete floor assembly with floor finish per finish plans. The assembly establishes a one-inch typical clearance relative to the level three elevation at two hundred eighty-four feet zero inches.
LEVEL 3 = 284.0' 284' - 0" Painted 1/2" x 1" flat plate steel rail bottom Floor finish, see finish plans Steel plate Steel closure plate Steel beam, see structural 1" typ
