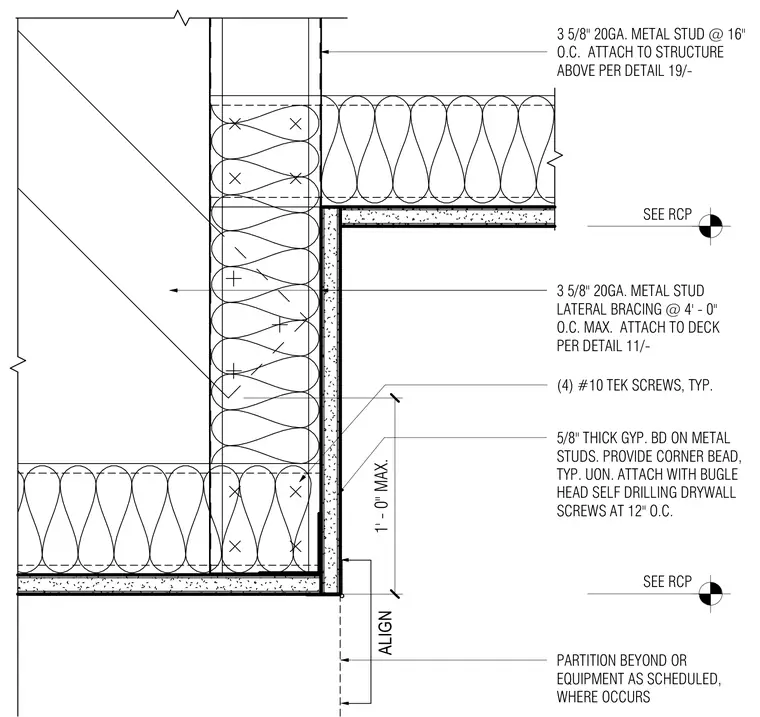

Five-eighths-inch-thick gypsum board is installed on three-and-five-eighths-inch twenty-gauge metal studs spaced at sixteen inches on center. The assembly uses bugle head self-drilling drywall screws spaced at twelve inches on center with corner bead provided typically unless otherwise noted. Lateral bracing consists of three-and-five-eighths-inch twenty-gauge metal studs at four feet zero inches maximum on center attached to the deck with four number ten TEK screws typically. The partition head connects to the structure above per specified details.
ALIGN SEE RCP SEE RCP 5/8" THICK GYP. BD ON METAL STUDS. PROVIDE CORNER BEAD, TYP. UON. ATTACH WITH BUGLE HEAD SELF DRILLING DRYWALL SCREWS AT 12" O.C. 3 5/8" 20GA. METAL STUD @ 16" O.C. ATTACH TO STRUCTURE ABOVE PER DETAIL 19/- 3 5/8" 20GA. METAL STUD LATERAL BRACING @ 4' - 0" O.C. MAX. ATTACH TO DECK PER DETAIL 11/- 1' - 0" MAX. (4) #10 TEK SCREWS, TYP. PARTITION BEYOND OR EQUIPMENT AS SCHEDULED, WHERE OCCURS
