Precast concrete stair treads and risers bear on hollow structural section steel beams and columns painted with high-performance coatings. An extruded aluminum picket guardrail finished with a three-part polyvinylidene fluoride paint system connects to the painted steel handrail and guardrail assembly. A top mullion with a cap piece receives laminated glass featuring an integral color film. The structural members are sized per structural drawings.

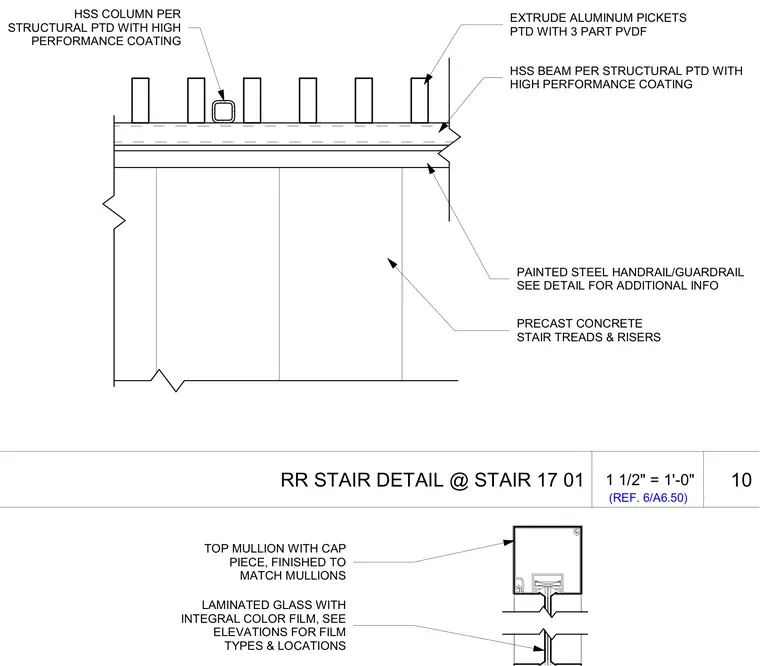

PRECAST CONCRETE STAIR TREADS & RISERS HSS BEAM PER STRUCTURAL PTD WITH HIGH PERFORMANCE COATING EXTRUDE ALUMINUM PICKETS PTD WITH 3 PART PVDF PAINTED STEEL HANDRAIL/GUARDRAIL SEE DETAIL FOR ADDITIONAL INFO HSS COLUMN PER STRUCTURAL PTD WITH HIGH PERFORMANCE COATING LAMINATED GLASS WITH INTEGRAL COLOR FILM, SEE ELEVATIONS FOR FILM TYPES & LOCATIONS TOP MULLION WITH CAP PIECE, FINISHED TO MATCH MULLIONS 1 1/2" = 1'-0" (REF. 6/A6.50) 10 RR STAIR DETAIL @ STAIR 17 01
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
