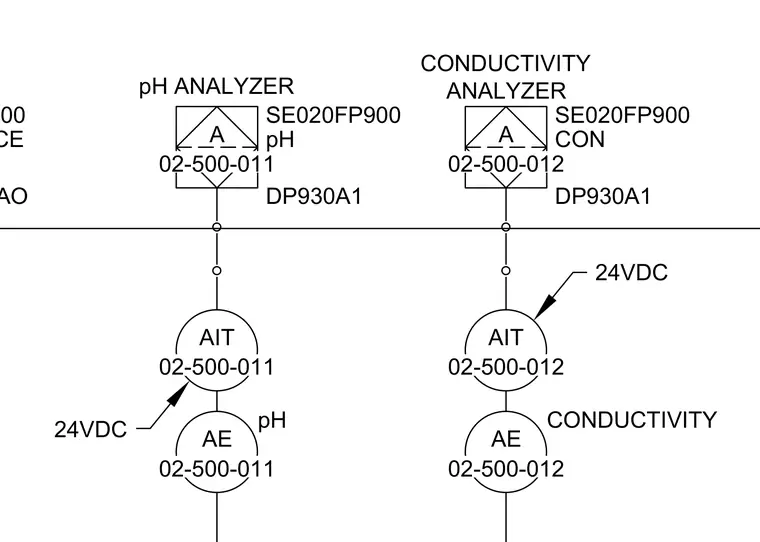

This diagram details the instrument loop connections for pH and conductivity analyzers powered by a 24VDC source. Transmitters and sensor assemblies including model numbers DP930A1 and SE020FP900 are interconnected with signal and power lines.
24VDC AIT 02-500-012 A 02-500-012 CON CONDUCTIVITY ANALYZER DP930A1 SE020FP900 AE 02-500-012 CONDUCTIVITY 24VDC AIT 02-500-011 A 02-500-011 pH pH ANALYZER DP930A1 SE020FP900 AE 02-500-011 pH FLOW PACE DP930A1-AO SE020FP900
