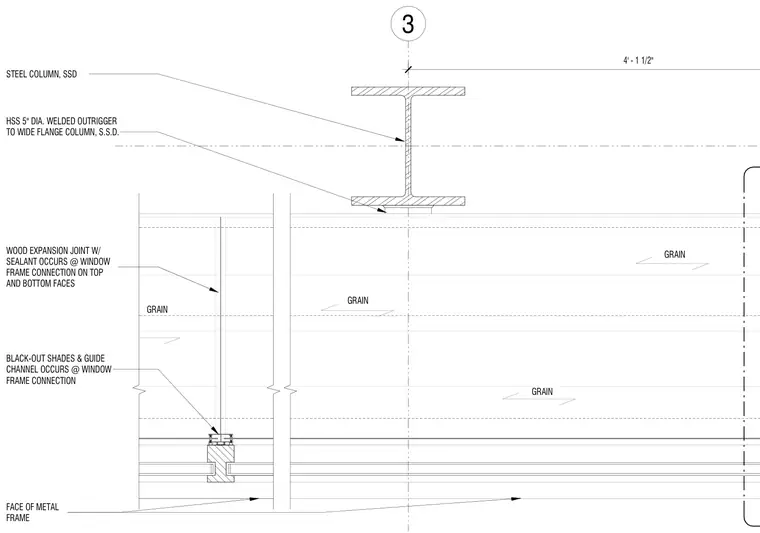

A five-inch diameter hollow structural section outrigger is welded to the face of a wide-flange steel column. The window frame assembly incorporates a wood expansion joint with sealant on both the top and bottom faces at the connection. Blackout shades and a guide channel are anchored directly at the window frame connection. The metal frame alignment is coordinated relative to the structural grid and column face.
STEEL COLUMN, SSD 3 FACE OF METAL FRAME GRAIN WOOD EXPANSION JOINT W/ SEALANT OCCURS @ WINDOW FRAME CONNECTION ON TOP AND BOTTOM FACES BLACK-OUT SHADES & GUIDE CHANNEL OCCURS @ WINDOW FRAME CONNECTION GRAIN GRAIN GRAIN HSS 5" DIA. WELDED OUTRIGGER TO WIDE FLANGE COLUMN, S.S.D. 4' - 1 1/2"
