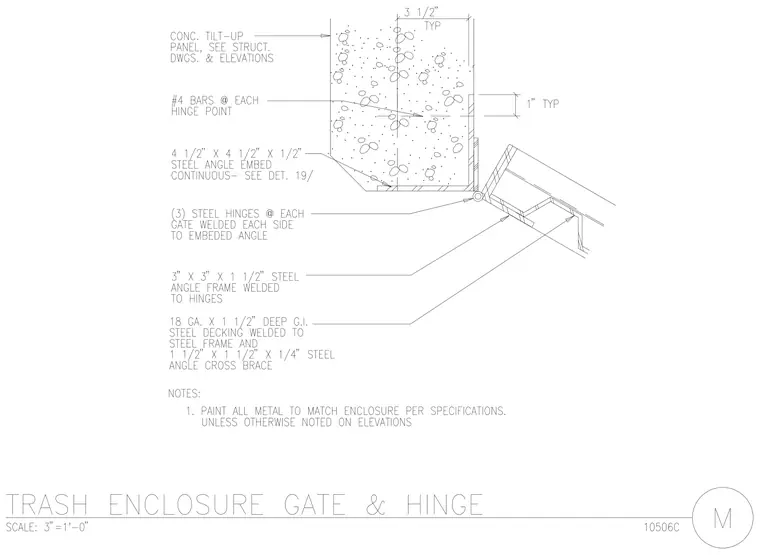

A concrete tilt-up panel anchors a continuous four-and-a-half by four-and-a-half by one-half inch steel angle embed with number four reinforcing bars at each hinge point. Three steel hinges weld on each side to the embedded angle and a three by three by one-and-a-half inch steel angle frame. Eighteen gauge by one-and-a-half inch deep galvanized steel decking welds to the steel frame along with a one-and-a-half by one-and-a-half by one-quarter inch steel angle cross brace. All metal is painted to match the enclosure per specifications unless otherwise noted on elevations.
