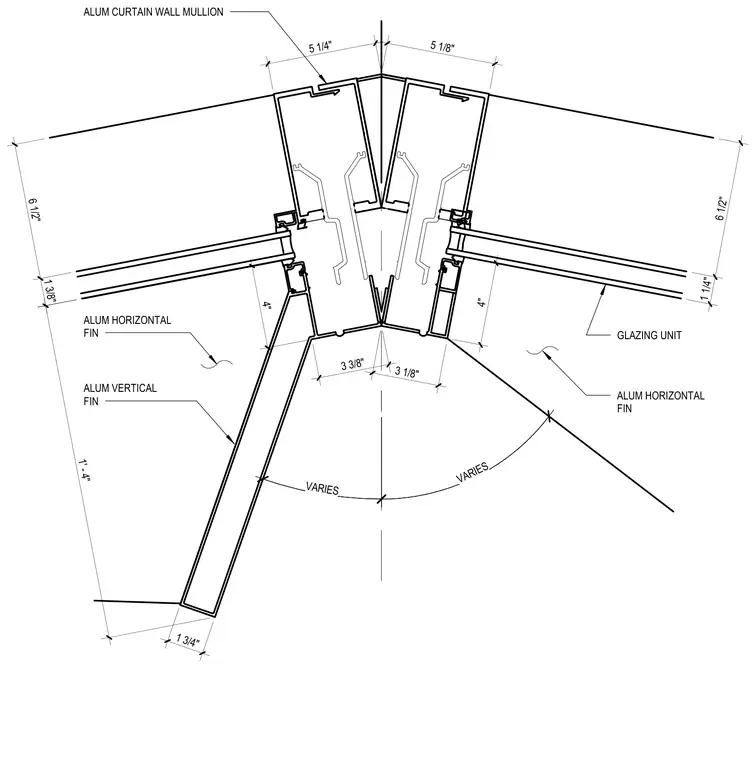

An inside corner assembly for an aluminum curtain wall system utilizing extruded aluminum mullions and glazing units. The intersecting mullions are flanked by aluminum vertical fins and horizontal fins projecting outward from the glazing line. Dimensions indicate various profile depths including 5-1/4 inch, 5-1/8 inch, 4 inch, and 1-4 inch overall projection for the vertical fin. Glazing units frame into the mullion channels with specific pocket dimensions.
GLAZING UNIT ALUM HORIZONTAL FIN ALUM CURTAIN WALL MULLION ALUM VERTICAL FIN ALUM HORIZONTAL FIN 1 3/4" 3 3/8" 3 1/8" 5 1/4" 5 1/8" 6 1/2" 1 1/4" 4" 4" 1' - 4" 6 1/2" 1 3/8" VARIES VARIES
