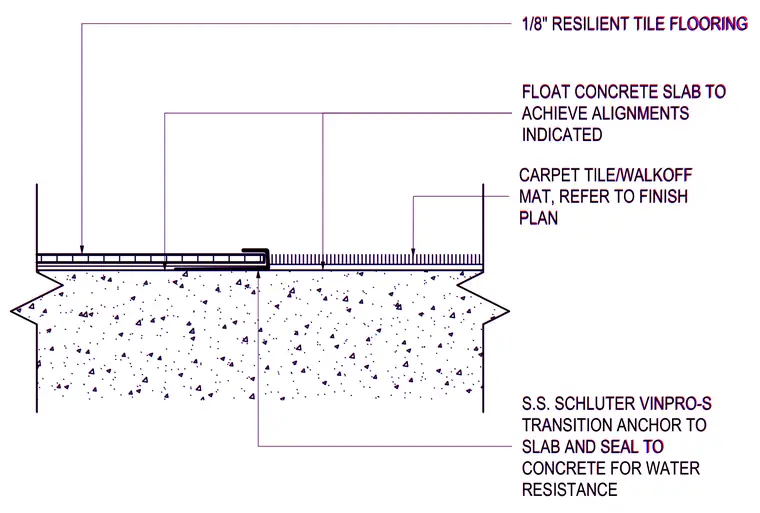

One-eighth inch resilient tile flooring meets carpet tile or walkoff mat over a concrete slab substrate. A stainless steel Schluter Vinpro-S transition strip anchors directly to the concrete slab and seals against moisture intrusion. The concrete slab is floated as necessary to achieve level finish alignments between the two flooring materials.
FLOAT CONCRETE SLAB TO ACHIEVE ALIGNMENTS INDICATED S.S. SCHLUTER VINPRO-S TRANSITION ANCHOR TO SLAB AND SEAL TO CONCRETE FOR WATER RESISTANCE CARPET TILE/WALKOFF MAT, REFER TO FINISH PLAN 1/8" RESILIENT TILE FLOORING FLOAT CONCRETE SLAB TO ACHIEVE ALIGNMENTS INDICATED S.S. SCHLUTER VINPRO-S TRANSITION ANCHOR TO SLAB AND SEAL TO CONCRETE FOR WATER RESISTANCE CARPET TILE/WALKOFF MAT, REFER TO FINISH PLAN 1/8" RESILIENT TILE FLOORING
