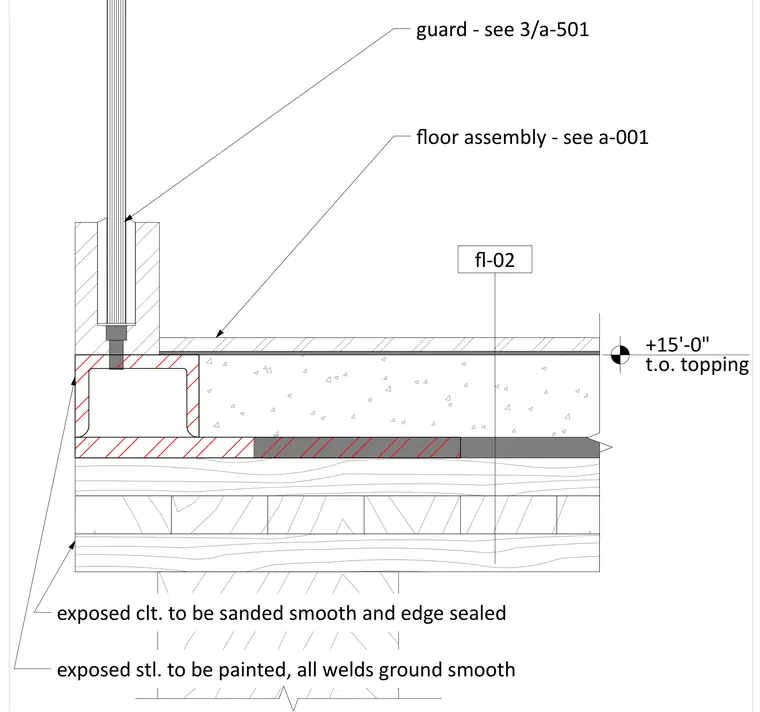

An architectural section detail at the second floor opening shows a guard anchored into a structural steel channel running along the floor edge at plus fifteen feet zero inches top of topping. The steel channel bears directly upon a multi-ply cross-laminated timber floor panel. All exposed steel components are specified to be painted with all welds ground smooth. The exposed cross-laminated timber is to be sanded smooth and edge sealed.
+15'-0" t.o. topping floor assembly - see a-001 exposed stl. to be painted, all welds ground smooth guard - see 3/a-501 exposed clt. to be sanded smooth and edge sealed fl-02
