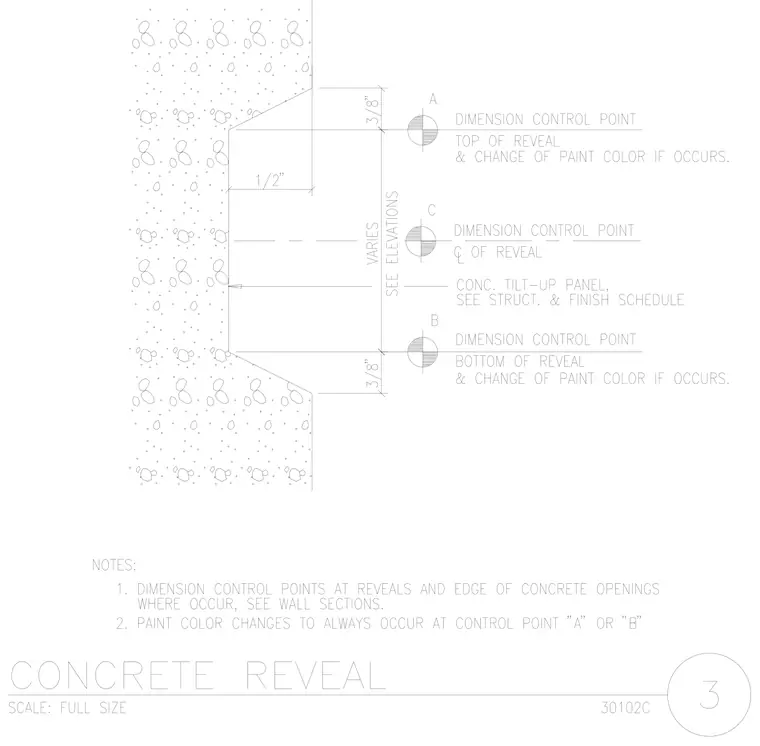

A concrete tilt-up panel features a horizontal reveal defined by a depth of 1/2 inch and angled bevels of 3/8 inch at the top and bottom. Dimension control points mark the top of the reveal and paint color change, the centerline of the reveal, and the bottom of the reveal and paint color change. Paint color changes occur exclusively at control points A or B. The vertical dimension of the reveal varies as indicated on the elevations.
