Architectural · A-C7TGH

Flush Frame Interior Rated Door Jamb

Materials

Elements

Walls Partitions Doors Insulation Anchors / Embeds

About this detail

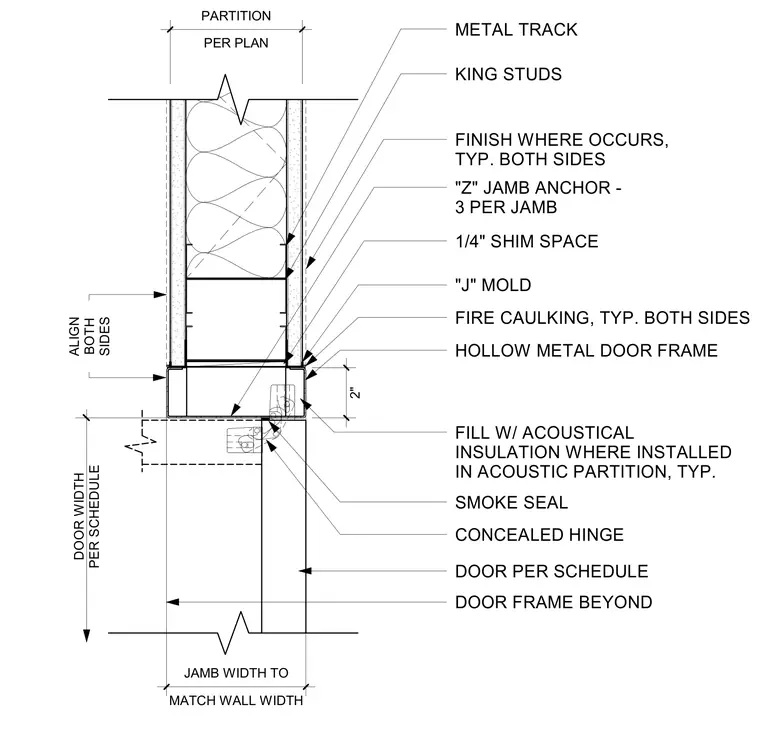

An interior rated hollow metal door frame is integrated into a metal stud partition wall. The assembly utilizes king studs and metal tracks sized per plan, with a Z-jamb anchor spaced three per jamb. A one-quarter-inch shim space is provided between the rough opening and the hollow metal door frame, sealed with fire caulking on both sides and a two-inch J-mold. The hollow frame is filled with acoustical insulation when installed in acoustic partitions. A smoke seal and concealed hinge connect the door panel to the frame, maintaining alignment on both sides.
