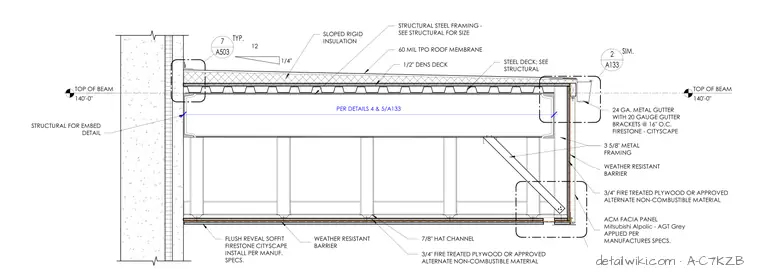

The canopy assembly is supported by structural steel framing with a steel deck topped by one-half inch DensDeck and sixty mil TPO roof membrane over sloped rigid insulation. The roof edge terminates in a twenty-four gauge metal gutter supported by twenty gauge brackets spaced at sixteen inches on center. The fascia consists of twelve-inch Mitsubishi Alpolic AGT Grey aluminum composite material panels installed over a weather-resistant barrier and three-quarter-inch fire-treated plywood. The soffit is finished with a flush reveal Firestone Cityscape system mounted to three-and-five-eighths-inch metal framing and seven-eighths-inch hat channels. Structural embedment details are referenced to sheets A133 and A503.
Text on the drawing
12 1/4" ACM FACIA PANEL Mitsubishi Alpolic - AGT Grey APPLIED PER MANUFACTURES SPECS. FLUSH REVEAL SOFFIT FIRESTONE CITYSCAPE INSTALL PER MANUF. SPECS. 1/2" DENS DECK 60 MIL TPO ROOF MEMBRANE STRUCTURAL STEEL FRAMING - SEE STRUCTURAL FOR SIZE TOP OF BEAM 140'-0" TOP OF BEAM 140'-0" A503 7 TYP. STEEL DECK; SEE STRUCTURAL A133 2 SIM. 3 5/8" METAL FRAMING 7/8" HAT CHANNEL 3/4" FIRE TREATED PLYWOOD OR APPROVED ALTERNATE NON-COMBUSTIBLE MATERIAL 24 GA. METAL GUTTER WITH 20 GAUGE GUTTER BRACKETS @ 16" O.C. FIRESTONE - CITYSCAPE 3/4" FIRE TREATED PLYWOOD OR APPROVED ALTERNATE NON-COMBUSTIBLE MATERIAL WEATHER RESISTANT BARRIER WEATHER RESISTANT BARRIER SLOPED RIGID INSULATION STRUCTURAL FOR EMBED DETAIL PER DETAILS 4 & 5/A133
