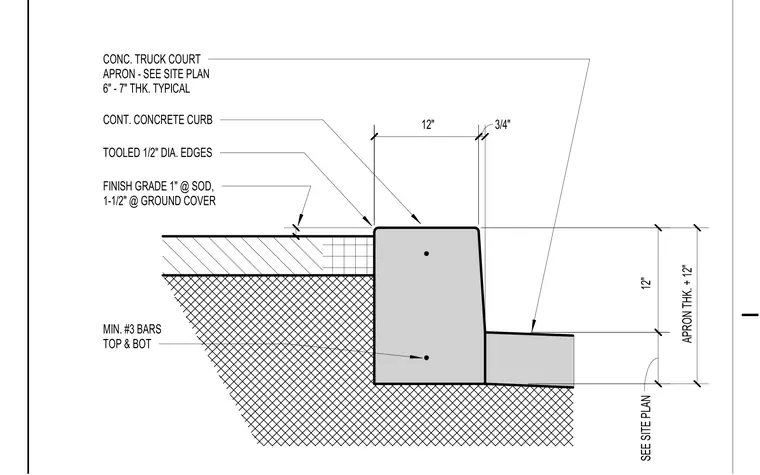

This assembly consists of a continuous concrete curb with a twelve-inch width and a three-quarter-inch top radius, featuring tooled one-half-inch diameter edges. The curb is reinforced with minimum number three reinforcing bars at the top and bottom. It sits adjacent to a concrete truck court apron, which is six to seven inches thick as indicated on the site plan. Finish grade is set at one inch below the curb top for sod and one and one-half inches below for ground cover. The total depth of the curb section is twelve inches plus the apron thickness.
Text on the drawing
CONC. TRUCK COURT APRON - SEE SITE PLAN 6" - 7" THK. TYPICAL CONT. CONCRETE CURB TOOLED 1/2" DIA. EDGES FINISH GRADE 1" @ SOD, 1-1/2" @ GROUND COVER 12" 3/4" MIN. #3 BARS TOP & BOT SEE SITE PLAN 12" APRON THK. + 12"
