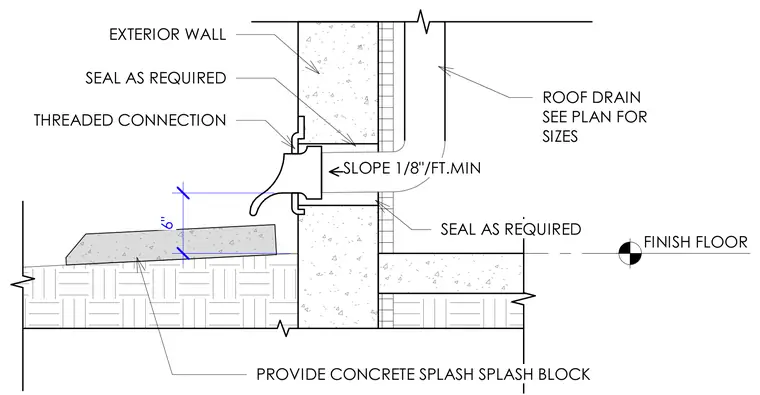

An overflow roof drain pipe penetrates the exterior wall with a threaded connection and discharges through a cow-tongue scupper above a concrete splash block at grade. Sealant is applied around the penetration as required. The drainage assembly maintains a minimum slope of one-eighth inch per foot toward the exterior discharge point.
EXTERIOR WALL FINISH FLOOR SLOPE 1/8"/FT.MIN SEAL AS REQUIRED ROOF DRAIN SEE PLAN FOR SIZES THREADED CONNECTION SEAL AS REQUIRED PROVIDE CONCRETE SPLASH SPLASH BLOCK 6"
