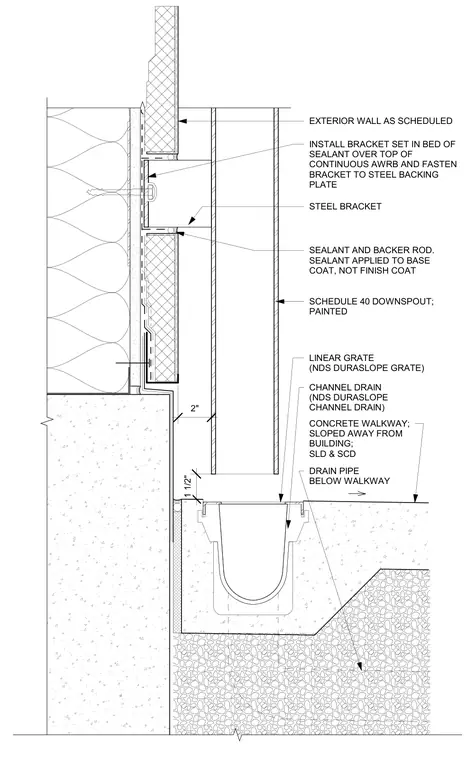

A painted Schedule 40 downspout drops down the face of the exterior wall, secured by a steel bracket fastened to a steel backing plate over a continuous air and water-resistive barrier. The bracket is set in a bed of sealant, and sealant with a backer rod is applied to the base coat rather than the finish coat. The downspout discharges two inches above a linear grate and NDS Duraslope channel drain set into a concrete walkway. The concrete walkway slopes away from the building toward the drain, which connects to a drain pipe below the walkway.
SCHEDULE 40 DOWNSPOUT; PAINTED STEEL BRACKET CHANNEL DRAIN (NDS DURASLOPE CHANNEL DRAIN) LINEAR GRATE (NDS DURASLOPE GRATE) CONCRETE WALKWAY; SLOPED AWAY FROM BUILDING; SLD & SCD DRAIN PIPE BELOW WALKWAY EXTERIOR WALL AS SCHEDULED SEALANT AND BACKER ROD. SEALANT APPLIED TO BASE COAT, NOT FINISH COAT 2" 1 1/2" INSTALL BRACKET SET IN BED OF SEALANT OVER TOP OF CONTINUOUS AWRB AND FASTEN BRACKET TO STEEL BACKING PLATE
