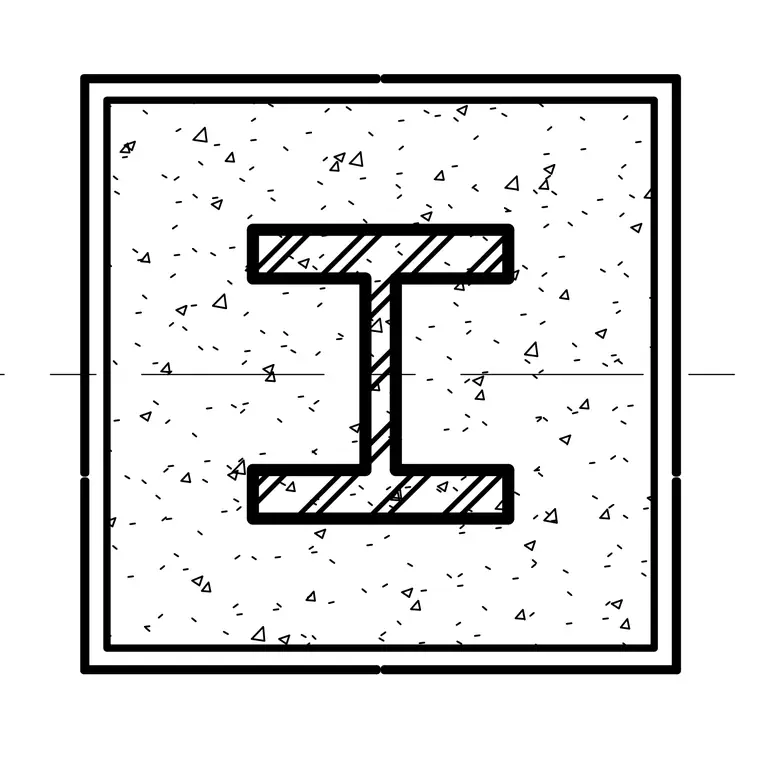

A steel wide-flange section is centered within a square concrete encasement. The concrete layer provides fireproofing or architectural finish around the structural steel column.
