A one or two hour rated CMU assembly constructed with 12-inch or 14-inch ground face concrete masonry units featuring an integral color finish. An exterior air and water barrier is applied behind a continuous layer of R-10 rigid insulation, included when required by the authority having jurisdiction. The interior side receives 5/8-inch gypsum board, specified as water-resistant at wet walls and carried up to the structure above. The wall assembly complies with UL Design U906 requirements.

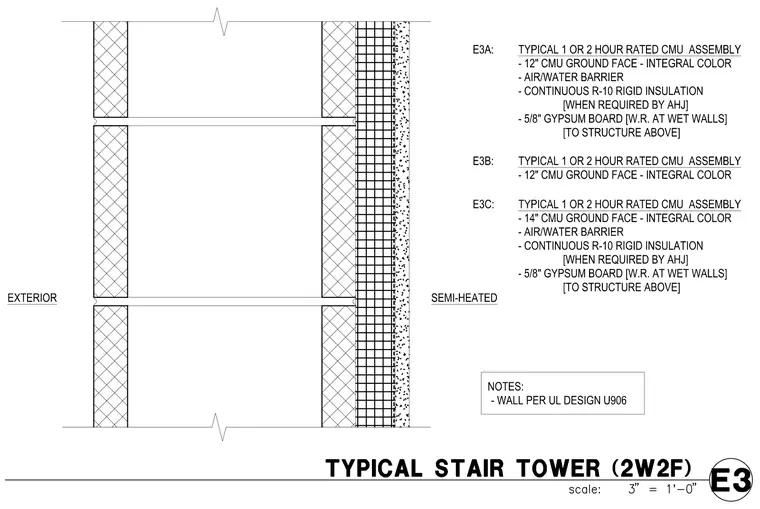

E3A: TYPICAL 1 OR 2 HOUR RATED CMU ASSEMBLY - 12" CMU GROUND FACE - INTEGRAL COLOR - AIR/WATER BARRIER - CONTINUOUS R-10 RIGID INSULATION [WHEN REQUIRED BY AHJ] - 5/8" GYPSUM BOARD [W.R. AT WET WALLS] [TO STRUCTURE ABOVE] NOTES: - WALL PER UL DESIGN U906 EXTERIOR E3B: TYPICAL 1 OR 2 HOUR RATED CMU ASSEMBLY - 12" CMU GROUND FACE - INTEGRAL COLOR E3C: TYPICAL 1 OR 2 HOUR RATED CMU ASSEMBLY - 14" CMU GROUND FACE - INTEGRAL COLOR - AIR/WATER BARRIER - CONTINUOUS R-10 RIGID INSULATION [WHEN REQUIRED BY AHJ] - 5/8" GYPSUM BOARD [W.R. AT WET WALLS] [TO STRUCTURE ABOVE] SEMI-HEATED
