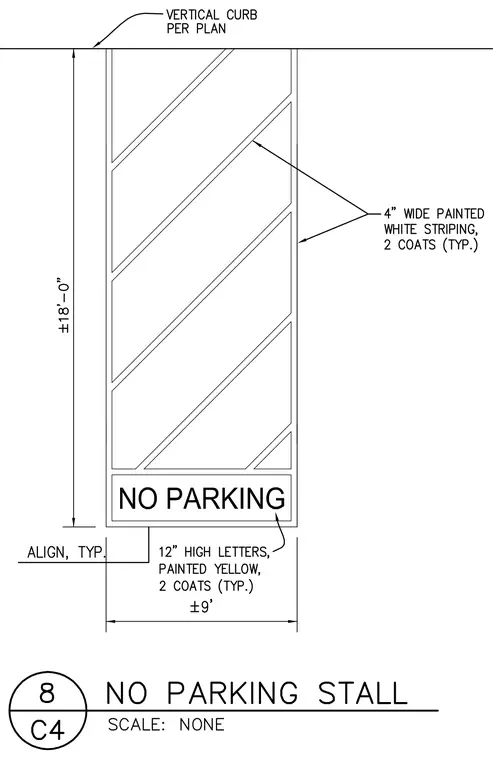

A standard no parking stall layout features four-inch wide painted white striping applied in two coats across the stall with diagonal hatching, bound by a vertical curb per plan at the head. The stall dimensions span approximately nine feet wide by eighteen feet long. A stenciled text box at the base reads NO PARKING in twelve-inch high yellow letters applied in two coats. All markings require alignment and two typical coats of paint.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
