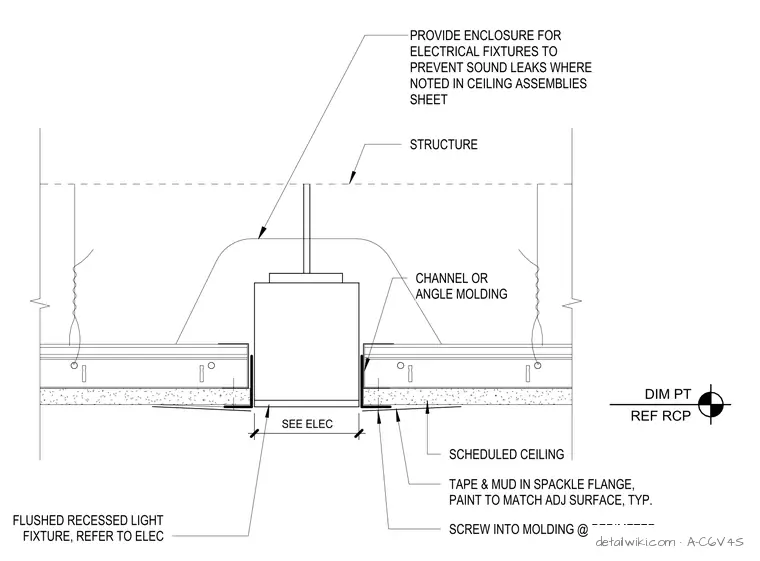

This assembly features a flushed recessed light fixture installed within a scheduled ceiling system. The fixture is supported by channel or angle molding at the perimeter, which is secured with screws. The spackle flange of the light fixture is taped and mudded to the adjacent ceiling surface and painted to match. An enclosure is provided around the electrical fixture to prevent sound leaks, as specified in the ceiling assemblies sheet, with the specific fixture type and dimensions referenced in the electrical drawings.
