Architectural · A-C6M4G

Stainless Steel Tool Rack Post and Rail Assembly

Materials

Steel Stainless Steel

Elements

Columns Beams Walls Decks Connections / Plates

Connections

Welded Connection Deck Attachment

About this detail

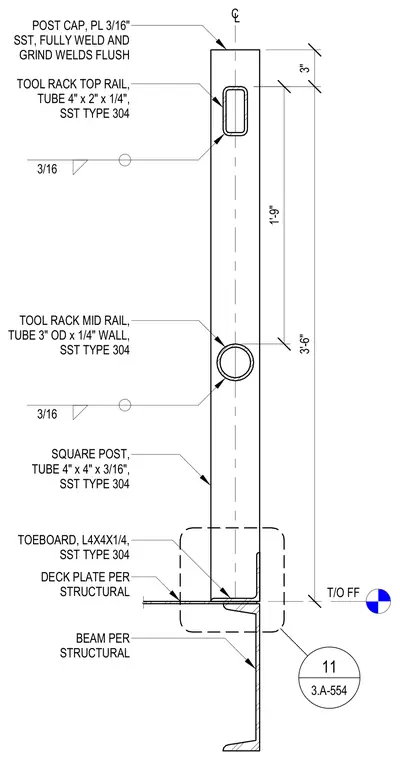

A 4" x 4" x 3/16" Type 304 stainless steel square post mounts to a structural deck plate and supporting beam, topped with a 3/16" stainless steel post cap fully welded and ground flush. A 4" x 2" x 1/4" Type 304 stainless steel rectangular tube forms the top rail, attached with a 3/16" fillet weld. A 3" outer diameter by 1/4" wall Type 304 stainless steel circular tube serves as the mid rail, secured with a 3/16" fillet weld. An L4x4x1/4 Type 304 stainless steel angle acts as a toeboard at the base above the deck plate.
