Roof Crown Gutter and Curtain Wall Parapet Intersection

Materials

Elements

Walls Curtain Walls Roofs Parapets Decks Waterproofing / Flashing Insulation Drainage Millwork / Casework Anchors / Embeds Connections / Plates

About this detail

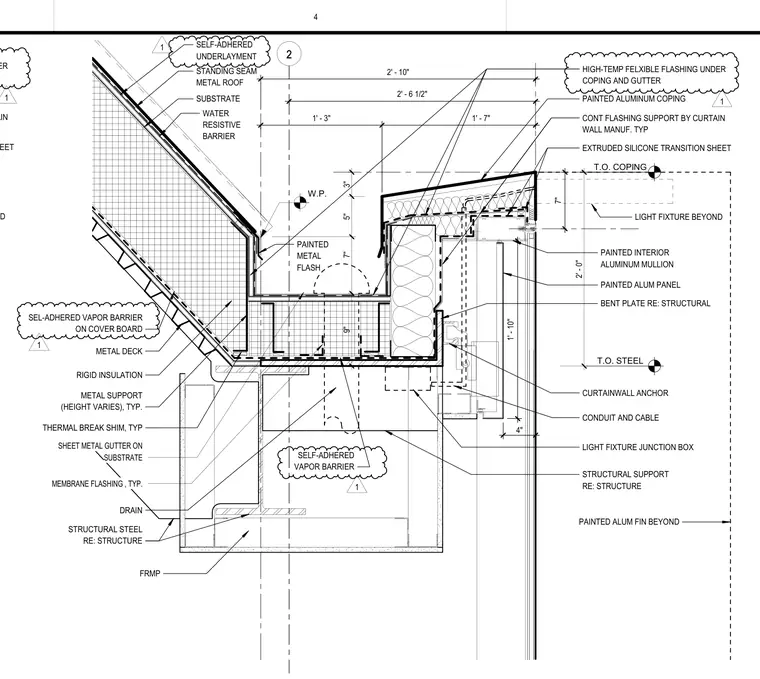

A standing seam metal roof transitions into a crown gutter assembly supported by structural steel framing and metal decking. A self-adhered underlayer, water-resistive barrier, and rigid insulation protect the substrate above structural framing. A continuous sheet metal gutter rests on a substrate with membrane flashing and a drain, incorporating thermal break shims and variable metal supports. At the parapet, a painted aluminum coping covers continuous flashing support from the curtain wall manufacturer, sealed with an extruded silicone transition sheet. A painted aluminum panel, interior mullions, and bent plates anchor to the structural support, while a light fixture junction box with conduit, cable, and a light fixture sits below the gutter assembly.
