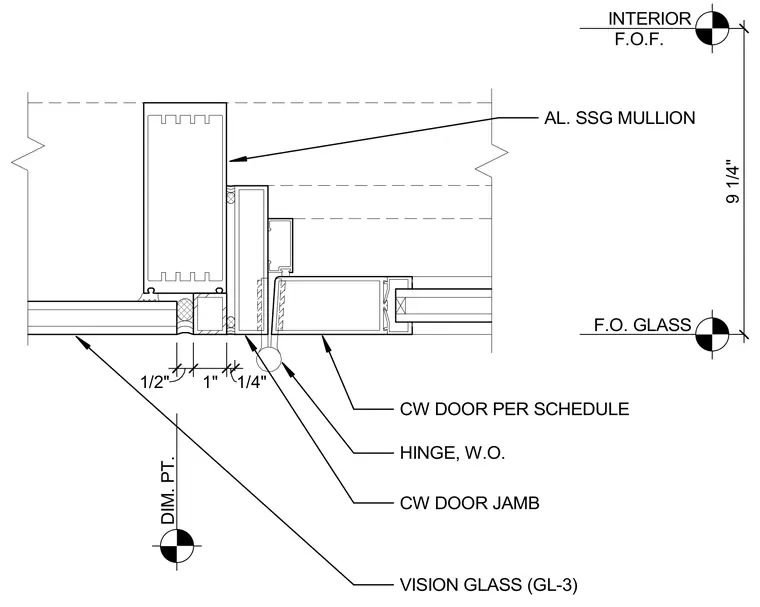

This plan detail shows a curtain wall door jamb adjacent to an aluminum structural silicone glazed mullion and vision glass designated as GL-3. The curtain wall door jamb connects to the framing system with a hinge and wide opening configuration. Dimension points reference the interior face of finish and face of glass with specific 1/2 inch, 1 inch, and 1/4 inch increments.
DIM. PT. F.O. GLASS INTERIOR F.O.F. CW DOOR JAMB 9 1/4" CW DOOR PER SCHEDULE VISION GLASS (GL-3) AL. SSG MULLION 1/2" 1" 1/4" HINGE, W.O.
