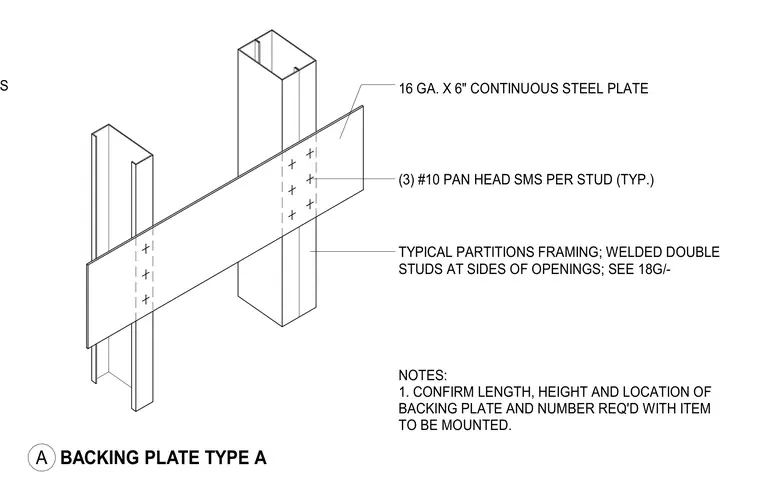

A continuous sixteen-gauge steel plate spans across vertical metal stud partition framing to provide secure mounting support. Three number-ten pan head sheet metal screws fasten the plate to each supporting stud as a typical installation. Double studs welded at the sides of partition openings receive the backing plate when equipment operating weight exceeds four hundred pounds. Field conditions require confirming the length, height, location, and required quantity of the backing plate directly with the mounted item.
A BACKING PLATE TYPE A (3) #10 PAN HEAD SMS PER STUD (TYP.) 16 GA. X 6" CONTINUOUS STEEL PLATE NOTES: 1. CONFIRM LENGTH, HEIGHT AND LOCATION OF BACKING PLATE AND NUMBER REQ'D WITH ITEM TO BE MOUNTED. TYPICAL PARTITIONS FRAMING; WELDED DOUBLE STUDS AT SIDES OF OPENINGS; SEE 18G/- 14 GA. X 6" CONT. STEEL PLATE, U.O.N., 2 STUD BAYS MIN. WHERE EQUIPMENT OPERATING WEIGHT EXCEEDS 400 LBS
