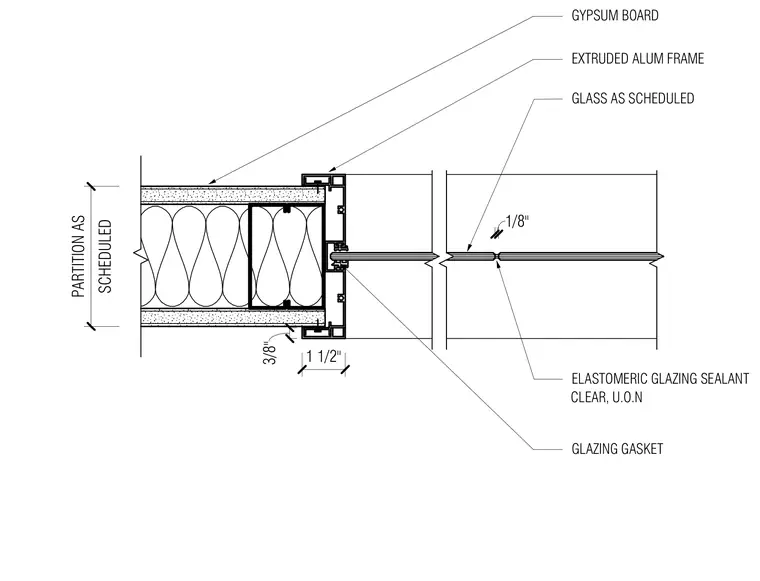

An extruded aluminum frame attaches to a scheduled gypsum board partition wall with insulation. Glass is held within the aluminum frame using glazing gaskets and sealed on both sides with clear elastomeric glazing sealant unless otherwise noted.
SCHEDULED PARTITION AS GLAZING GASKET EXTRUDED ALUM FRAME GYPSUM BOARD 1 1/2" 3/8" 1/8" GLASS AS SCHEDULED ELASTOMERIC GLAZING SEALANT CLEAR, U.O.N
