Architectural · A-C5Y44

Scissor Lift Pit Edge and Drain Detail

Elements

About this detail

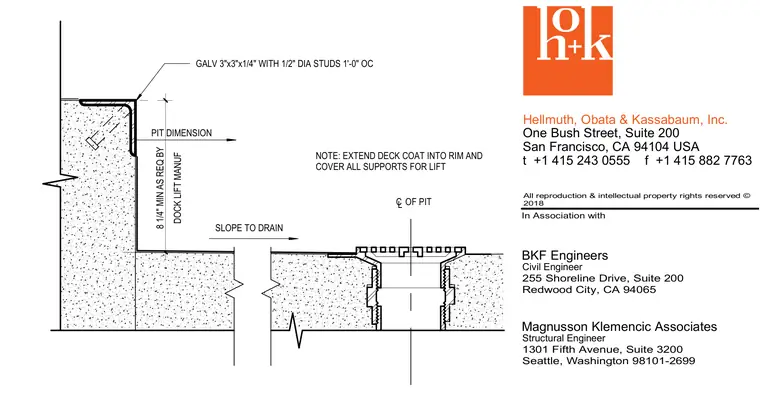

A galvanized 3-inch by 3-inch by 1/4-inch angle with half-inch diameter studs spaced at 12 inches on center embeds into the top corner of the concrete pit wall, establishing the edge condition and drainage setup. The floor slopes toward a center drain with a minimum 8 1/4 inch depth as required by the dock lift manufacturer. A drawing note specifies to extend the deck coating into the rim and cover all supports for the lift.
