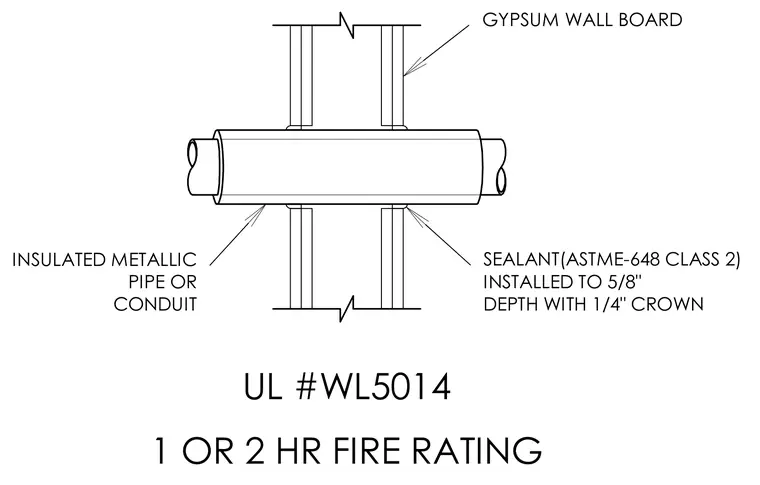

An insulated metallic pipe or conduit penetrates a gypsum wall board partition and is sealed with a firestop system. The joint around the penetration is filled with an ASTM E-648 Class 2 sealant installed to a five-eighths inch depth with a quarter-inch crown. The assembly complies with UL system number WL5014 to achieve a one or two hour fire rating.
UL #WL5014 1 OR 2 HR FIRE RATING SEALANT(ASTME-648 CLASS 2) INSTALLED TO 5/8" DEPTH WITH 1/4" CROWN INSULATED METALLIC PIPE OR CONDUIT GYPSUM WALL BOARD
