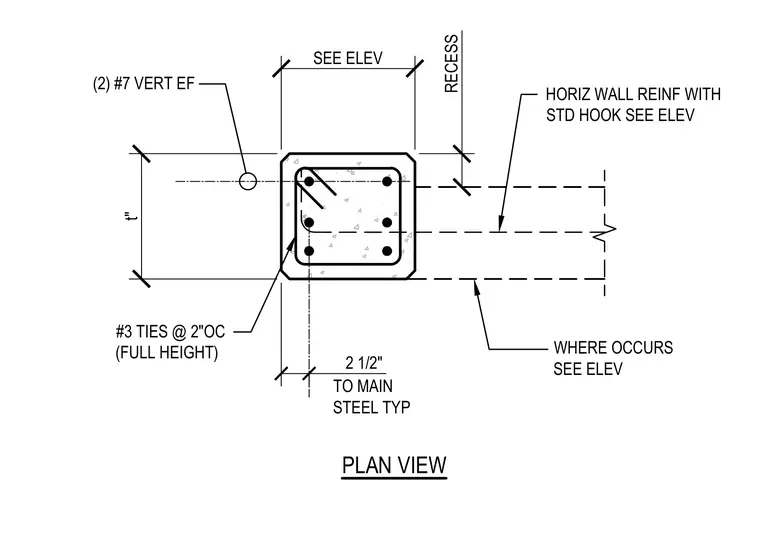

This plan detail shows a concrete wall panel intersection reinforced with two number seven vertical bars each face and number three ties spaced at two inches on center full height. Horizontal wall reinforcement with standard hooks ties into the assembly where indicated by elevations. The main steel is set with a two and a half inch clearance typical.
WHERE OCCURS SEE ELEV RECESS SEE ELEV t" HORIZ WALL REINF WITH STD HOOK SEE ELEV 2 1/2" TO MAIN STEEL TYP (2) #7 VERT EF #3 TIES @ 2"OC (FULL HEIGHT) PLAN VIEW
