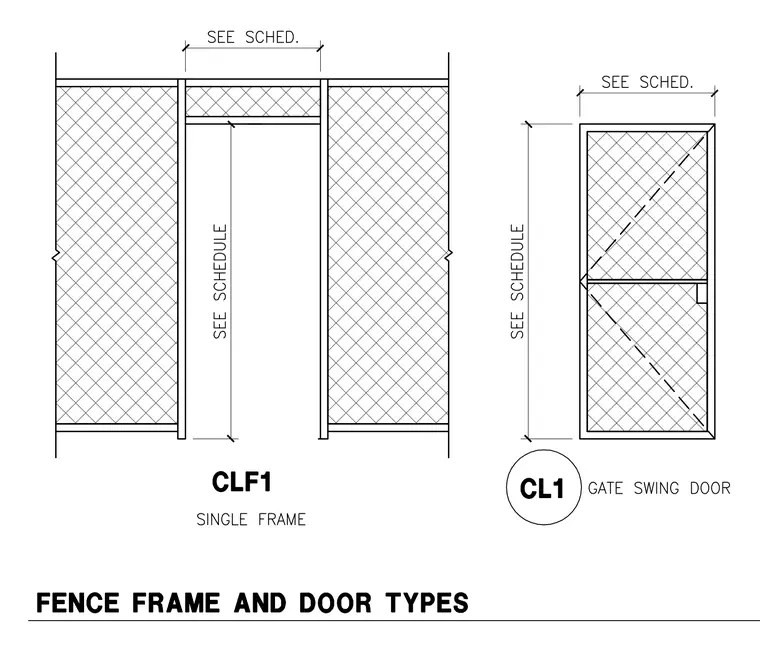

A chain link fence single frame includes an overhead transom and an accompanying chain link gate swing door. Width and height dimensions are referenced to the project schedule. The gate features diagonal bracing and hardware mounted per schedule.
