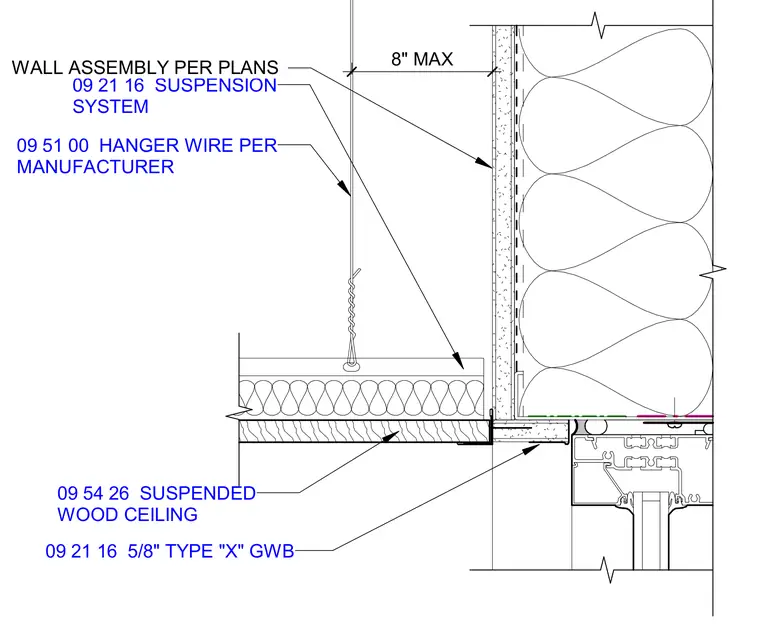

A suspended wood ceiling terminates at a framed wall assembly featuring five-eighths-inch Type X gypsum board on a suspension system. The wood ceiling is hung with hanger wires per the manufacturer requirements. The wall assembly is constructed per plans with an eight-inch maximum dimension shown.
09 21 16 5/8" TYPE "X" GWB 09 21 16 SUSPENSION SYSTEM 8" MAX WALL ASSEMBLY PER PLANS 09 54 26 SUSPENDED WOOD CEILING 09 51 00 HANGER WIRE PER MANUFACTURER
