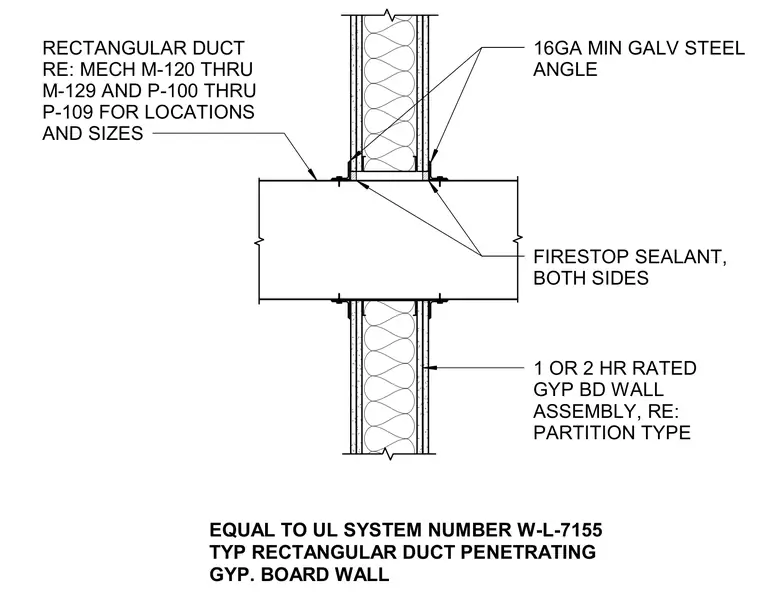

A rectangular duct penetrates a one-hour or two-hour rated gypsum board wall assembly framed with metal studs. A sixteen-gauge minimum galvanized steel angle frames the penetration on both sides of the wall. Firestop sealant is applied on both sides of the wall around the perimeter of the duct. The assembly conforms to Underwriters Laboratories system number W-L-7155.
16GA MIN GALV STEEL ANGLE EQUAL TO UL SYSTEM NUMBER W-L-7155 TYP RECTANGULAR DUCT PENETRATING GYP. BOARD WALL 1 OR 2 HR RATED GYP BD WALL ASSEMBLY, RE: PARTITION TYPE FIRESTOP SEALANT, BOTH SIDES RECTANGULAR DUCT RE: MECH M-120 THRU M-129 AND P-100 THRU P-109 FOR LOCATIONS AND SIZES
