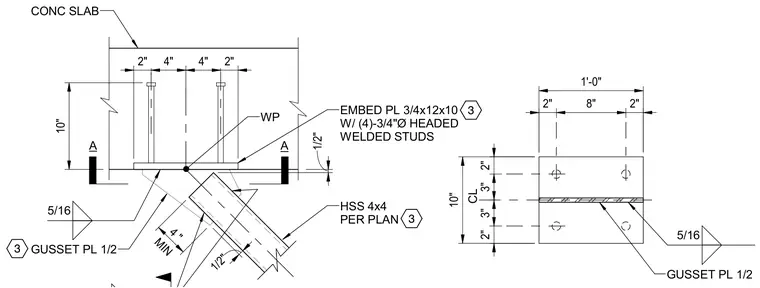

A hollow structural section brace connects to a concrete slab using a half-inch thick gusset plate welded with a five-sixteenth-inch fillet weld. The gusset plate ties into a three-quarter by twelve by ten-inch embedment plate secured in the concrete with four three-quarter-inch diameter headed welded studs. A four-inch minimum clearance is maintained at the brace intersection. The assembly transfers lateral loads from the structural brace into the concrete floor slab.
10" 2" 4" 4" 2" MIN 4 " GUSSET PL 1/2 3 5/16 1/2" HSS 4x4 PER PLAN 3 EMBED PL 3/4x12x10 W/ (4)-3/4"Ø HEADED WELDED STUDS 3 CONC SLAB A A 1/2" WP 2" 3" 3" 2" 10" 2" 8" 2" 1'-0" CL GUSSET PL 1/2 5/16
