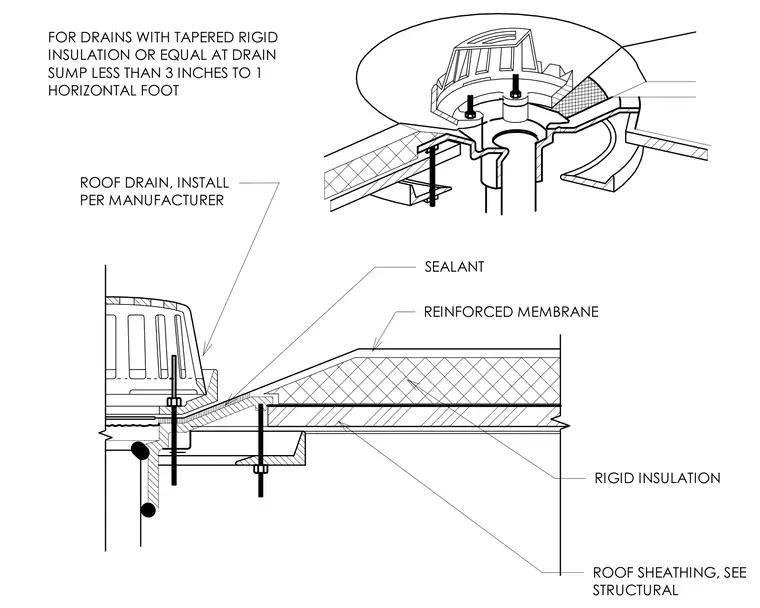

This assembly details a commercial roof drain installation set over roof sheathing and structural supports. Rigid insulation and tapered rigid insulation form a drain sump with a maximum slope of three inches per one horizontal foot. A reinforced waterproofing membrane ties continuously into the drain flange, sealed with manufacturer-approved sealant. The roof drain unit is mechanically fastened through the assembly per the manufacturer specifications.
ROOF SHEATHING, SEE STRUCTURAL FOR DRAINS WITH TAPERED RIGID INSULATION OR EQUAL AT DRAIN SUMP LESS THAN 3 INCHES TO 1 HORIZONTAL FOOT ROOF DRAIN, INSTALL PER MANUFACTURER SEALANT REINFORCED MEMBRANE RIGID INSULATION
