A two-by-eight number two Southern Pine pressure-treated wall buck is secured to a wood stud or blocked stud wall by others. A three-eighths-inch by five-inch lag screw with a zinc-plated flat washer, measuring zero-point-four-four-inch inside diameter by one-inch outside diameter by zero-point-zero-eight-three-inch thick, fastens the buck through a three-quarter-inch nominal wall board thickness.

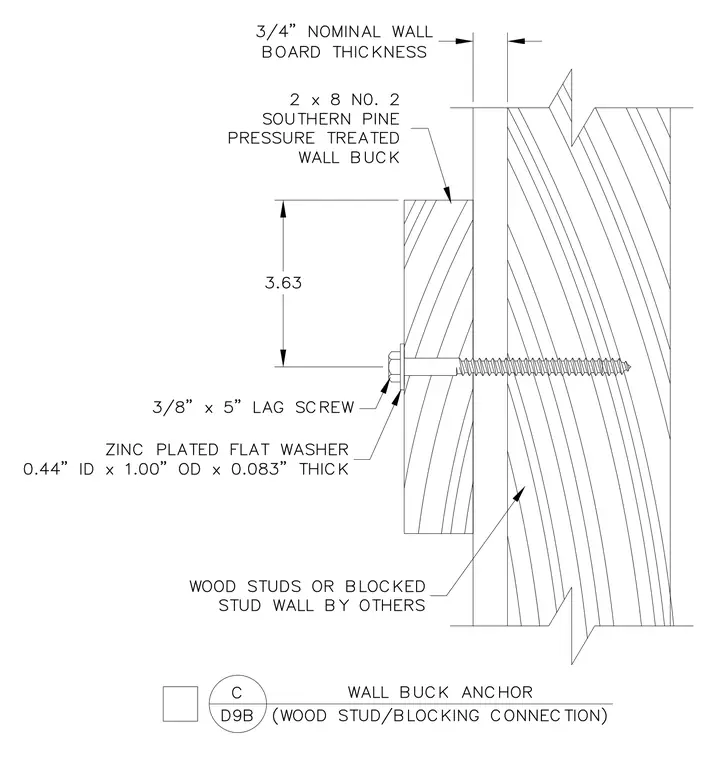

3.63 2 x 8 N0. 2 SOUTHERN PINE PRESSURE TREATED WALL BUCK 3/4" NOMINAL WALL BOARD THICKNESS 3/8" x 5" LAG SCREW ZINC PLATED FLAT WASHER 0.44" ID x 1.00" OD x 0.083" THICK WOOD STUDS OR BLOCKED STUD WALL BY OTHERS WALL BUCK ANCHOR C D9B (WOOD STUD/BLOCKING CONNECTION) 7
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
