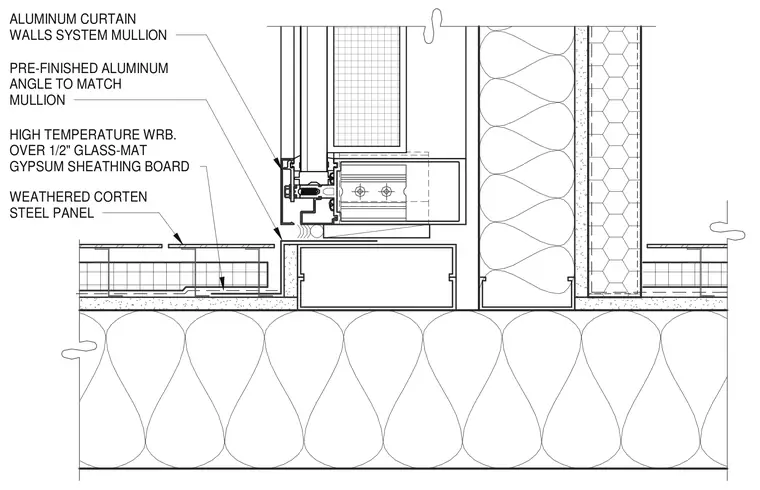

An aluminum curtain wall system mullion ties into a pre-finished aluminum angle that matches the mullion profile. A high-temperature weather-resistive barrier is applied over one-half-inch glass-mat gypsum sheathing board behind weathered weathering steel panels.
ALUMINUM CURTAIN WALLS SYSTEM MULLION PRE-FINISHED ALUMINUM ANGLE TO MATCH MULLION HIGH TEMPERATURE WRB. OVER 1/2" GLASS-MAT GYPSUM SHEATHING BOARD WEATHERED CORTEN STEEL PANEL
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
