A Mecho/5 pocket bracket mounts within a recessed ceiling pocket formed by one-half-inch thick gypsum wallboard on metal framing. Continuous wood blocking, provided by others, must be level and serves as the primary overhead support for the pocket bracket and roller tube assembly. The reverse-roll shade band features a hembar sealed inside the shadecloth in the up position. A single closure mount finishes the pocket opening, and a bead chain pull cord hangs below for manual operation.

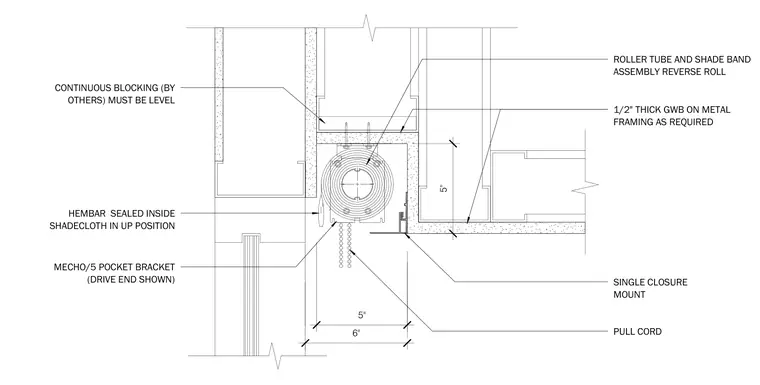

1/2" THICK GWB ON METAL FRAMING AS REQUIRED PULL CORD SINGLE CLOSURE MOUNT ROLLER TUBE AND SHADE BAND ASSEMBLY REVERSE ROLL HEMBAR SEALED INSIDE SHADECLOTH IN UP POSITION CONTINUOUS BLOCKING (BY OTHERS) MUST BE LEVEL MECHO/5 POCKET BRACKET (DRIVE END SHOWN) 5" 6" 5"
