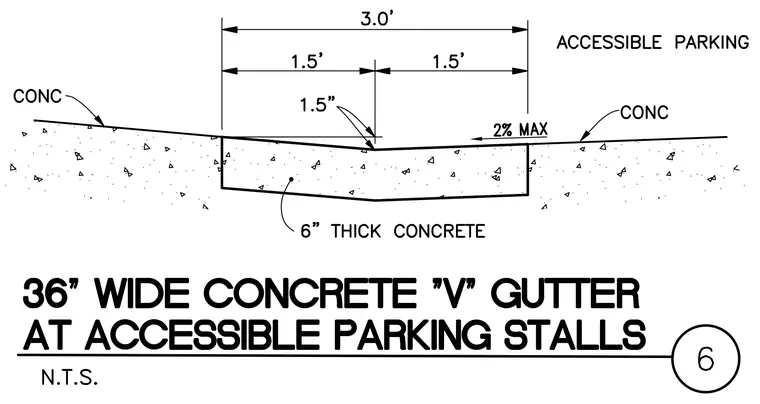

A 36-inch wide cast-in-place concrete V-gutter is recessed into the pavement adjacent to accessible parking stalls with a maximum 2% cross slope. The gutter profile features a total width of 3.0 feet divided equally into 1.5-foot slopes dropping 1.5 inches to a central invert. The structural section consists of a 6-inch thick concrete pad shaped to match the V profile and cast monolithically or monolithically tied to the surrounding concrete pavement.
