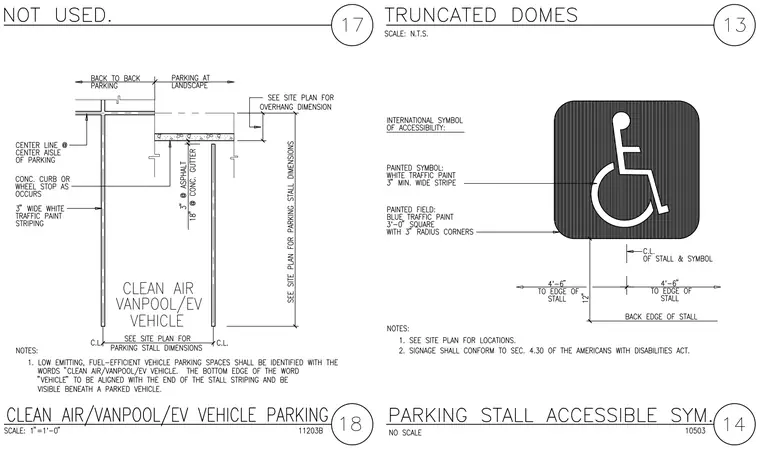

Clean air vanpool and electric vehicle parking stalls are delineated with 3-inch wide white traffic paint striping, concrete curbs or wheel stops as required, and the words CLEAN AIR VANPOOL/EV VEHICLE marked on the pavement aligned with the stall striping. Accessible parking stalls feature the International Symbol of Accessibility painted in white traffic paint with a 3-inch minimum wide stripe centered within a 3-foot square blue traffic paint field having 3-inch radius corners. Parking stall layouts maintain specified dimensions relative to centerlines, aisles, and back edges per site plans and ADA standards.
