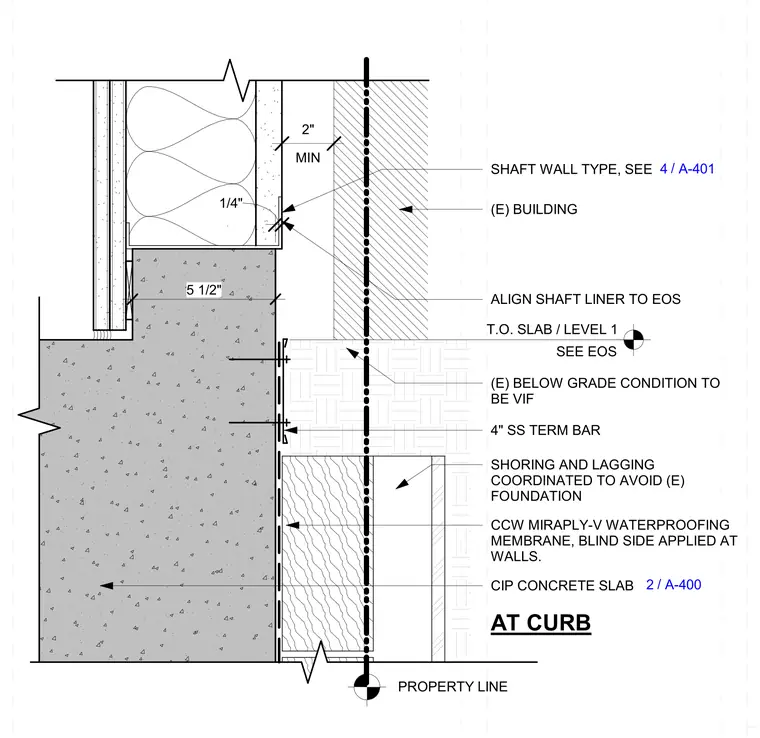

The foundation curb condition at the property line features a cast-in-place concrete slab and foundation wall. A blind-side waterproofing membrane is applied at the walls, secured with a four-inch stainless steel termination bar. Below-grade conditions are verified in the field, and shoring and lagging are coordinated to avoid the existing foundation. The shaft wall liner aligns with the edge of slab, maintaining a minimum two-inch clearance at the curb.
PROPERTY LINE T.O. SLAB / LEVEL 1 SEE EOS SHAFT WALL TYPE, SEE / 4 A-401 CIP CONCRETE SLAB / 2 A-400 ALIGN SHAFT LINER TO EOS (E) BUILDING MIN 2" AT CURB CCW MIRAPLY-V WATERPROOFING MEMBRANE, BLIND SIDE APPLIED AT WALLS. 4" SS TERM BAR (E) BELOW GRADE CONDITION TO BE VIF SHORING AND LAGGING COORDINATED TO AVOID (E) FOUNDATION 1/4" 5 1/2"
