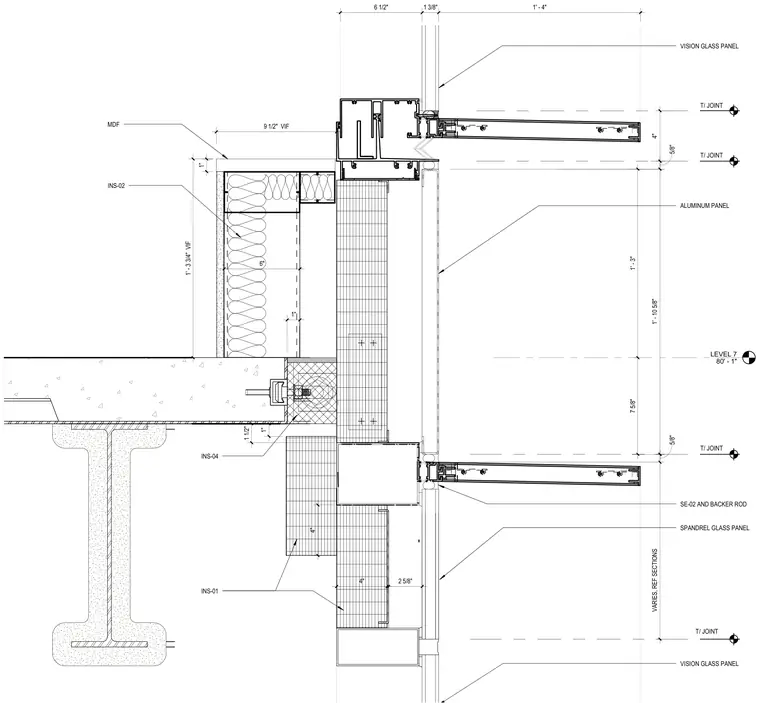

A curtain wall transition at the Level 7 concrete slab edge incorporates vision glass, spandrel glass, and an aluminum panel stack band. The slab edge anchors the framing system while maintaining alignment with horizontal mullions and interior finishes including medium-density fiberboard and rigid insulation layers INS-01, INS-02, and INS-04. Joint seals SE-02 and backer rods provide weatherproofing at the intersection points.
LEVEL 7 80' - 1" ALUMINUM PANEL SE-02 AND BACKER ROD VISION GLASS PANEL SPANDREL GLASS PANEL VISION GLASS PANEL 7 5/8" 1' - 3" 1' - 10 5/8" 5/8" 5/8" T/ JOINT 1" 4" 6" 1" 9 1/2" VIF 2 5/8" 4" INS-01 INS-02 MDF VARIES, REF SECTIONS 4" T/ JOINT T/ JOINT T/ JOINT INS-04 1' - 3 3/4" VIF 1 1/2" 1" 6 1/2" 1 3/8" 1' - 4"
