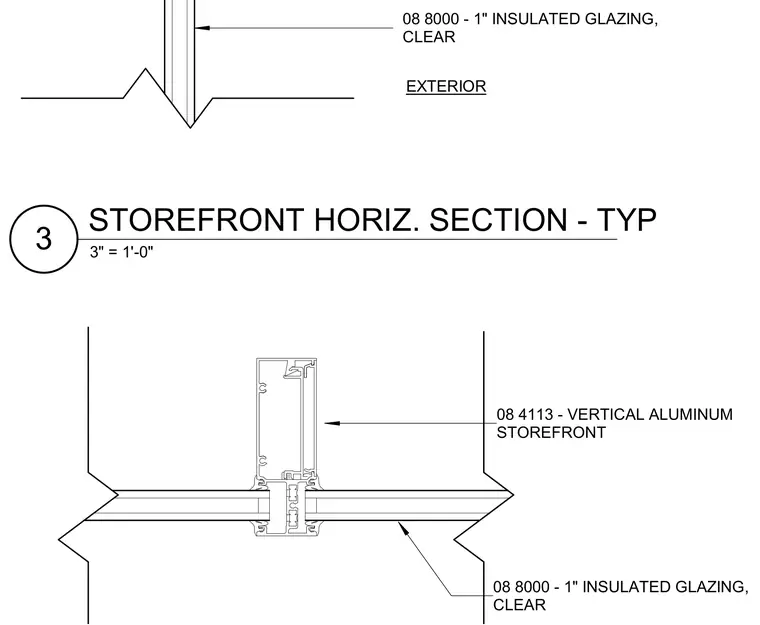

A vertical aluminum storefront frame member connects to one-inch insulated clear glass units on both sides. The assembly is detailed at scale to indicate the profile of the vertical mullion and the glazing pocket configuration.
08 8000 - 1" INSULATED GLAZING, CLEAR EXTERIOR 08 4113 - VERTICAL ALUMINUM STOREFRONT 08 8000 - 1" INSULATED GLAZING, CLEAR 3" = 1'-0" 3 STOREFRONT HORIZ. SECTION - TYP
