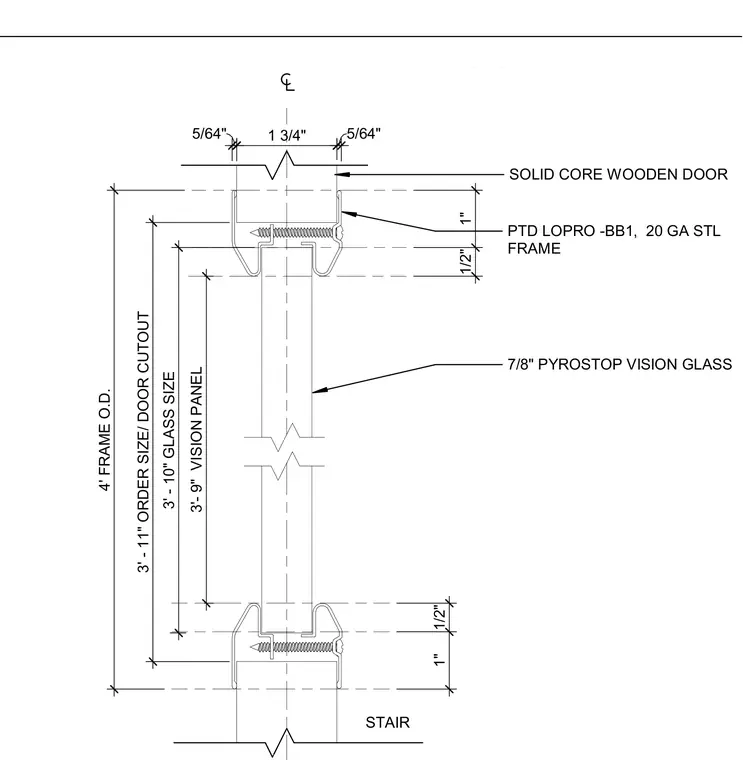

A seven-eighths-inch Pyrostop vision glass panel is installed within a solid core wooden door using a painted low-profile twenty-gauge steel frame. The frame secures the glazing with countersunk fasteners on both sides of the door panel. Dimensional callouts indicate a one-and-three-quarter-inch door thickness with specific clearances and glass sizing.
SOLID CORE WOODEN DOOR 7/8" PYROSTOP VISION GLASS 1 3/4" 5/64" 5/64" PTD LOPRO -BB1, 20 GA STL FRAME 1/2" 1" STAIR 3'- 9" VISION PANEL 3' - 10" GLASS SIZE 3' - 11" ORDER SIZE/ DOOR CUTOUT 4' FRAME O.D. 1" 1/2"
