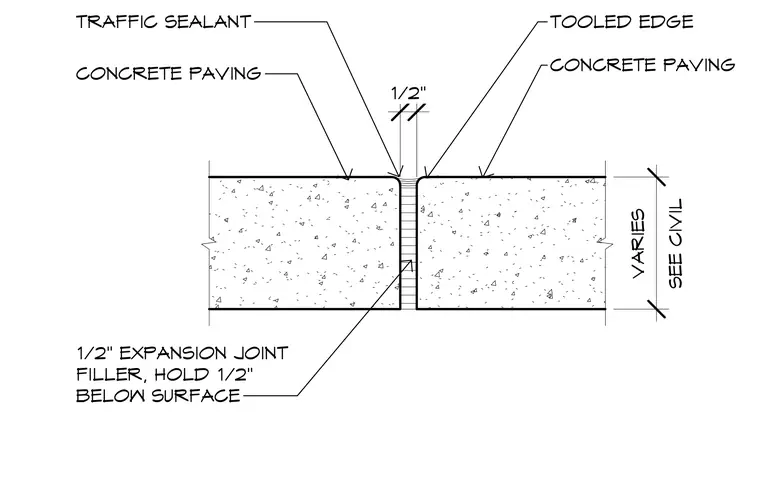

Two sections of concrete paving are separated by a one-half-inch expansion joint filler held one-half-inch below the surface. A traffic sealant fills the top portion of the joint between the tooled edges of the concrete paving. The total depth of the concrete paving varies as specified per civil drawings.
SEE CIVIL VARIES 1/2" 1/2" EXPANSION JOINT FILLER, HOLD 1/2" BELOW SURFACE CONCRETE PAVING TOOLED EDGE TRAFFIC SEALANT CONCRETE PAVING
