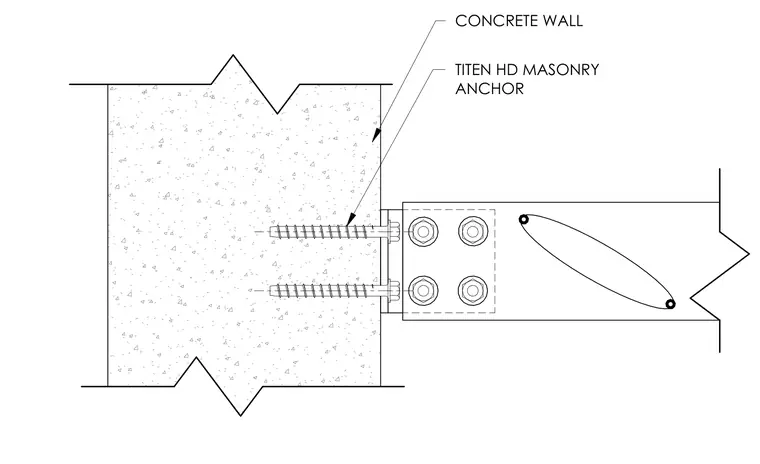

A sunshade arm connects to a concrete wall via a mounting plate secured by four Titen HD masonry anchors. The threaded anchors embed directly into the concrete wall to transfer structural loads from the sunshade. Hex nuts fasten the sunshade mounting bracket to the protruding anchor bolts.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
