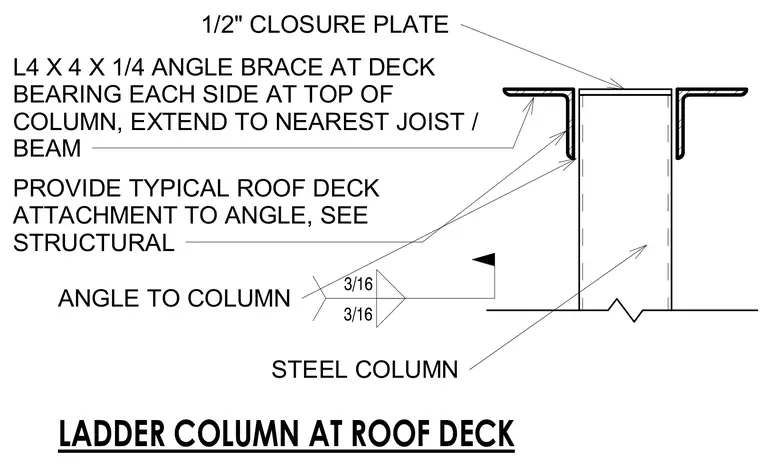

An L4 x 4 x 1/4 angle brace is placed at the roof deck bearing on each side at the top of the steel column, extending to the nearest joist or beam. A one-half-inch closure plate covers the top of the column. A three-sixteenth-inch fillet weld secures the angle to the column. Typical roof deck attachment to the angle is provided as specified in the structural drawings.
3/16 3/16 ANGLE TO COLUMN STEEL COLUMN PROVIDE TYPICAL ROOF DECK ATTACHMENT TO ANGLE, SEE STRUCTURAL 1/2" CLOSURE PLATE L4 X 4 X 1/4 ANGLE BRACE AT DECK BEARING EACH SIDE AT TOP OF COLUMN, EXTEND TO NEAREST JOIST / BEAM LADDER COLUMN AT ROOF DECK
