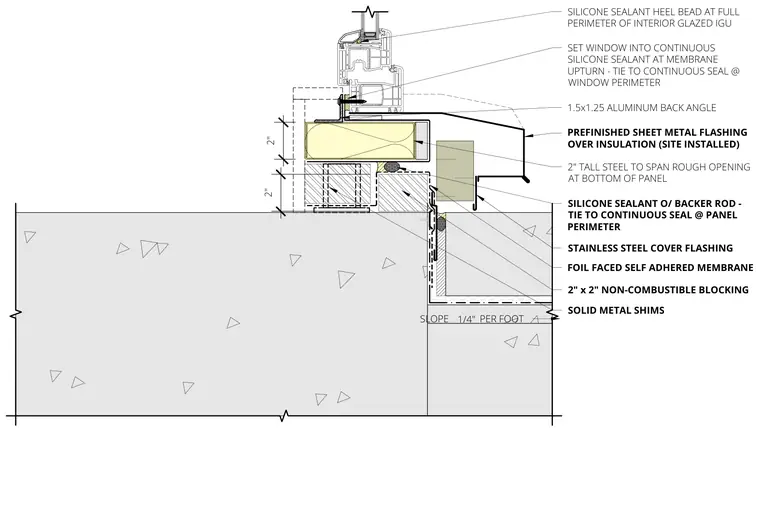

A prefinished sheet metal flashing is installed over insulation at the window sill, sloping one quarter inch per foot outward and set over solid metal shims. The window unit is bedded in a continuous silicone sealant over a foil-faced self-adhered membrane upturn, tied into the continuous perimeter seal. A two-inch tall steel member spans the rough opening at the bottom of the panel, backed by a one-and-a-half by one-and-a-quarter inch aluminum angle. A stainless steel cover flashing and two-by-two-inch non-combustible blocking protect the rough opening substrate, with silicone sealant over a backer rod sealing the panel and glazing joints.
SLOPE PER FOOT 1/4" SOLID METAL SHIMS FOIL FACED SELF ADHERED MEMBRANE SILICONE SEALANT O/ BACKER ROD - TIE TO CONTINUOUS SEAL @ PANEL PERIMETER 2" x 2" NON-COMBUSTIBLE BLOCKING 2" STAINLESS STEEL COVER FLASHING 2" 8001 8095 7134 8727 Ix=2.20 8727 Ix=2.20 PREFINISHED SHEET METAL FLASHING OVER INSULATION (SITE INSTALLED) SET WINDOW INTO CONTINUOUS SILICONE SEALANT AT MEMBRANE UPTURN - TIE TO CONTINUOUS SEAL @ WINDOW PERIMETER SILICONE SEALANT HEEL BEAD AT FULL PERIMETER OF INTERIOR GLAZED IGU 1.5x1.25 ALUMINUM BACK ANGLE 2" TALL STEEL TO SPAN ROUGH OPENING AT BOTTOM OF PANEL
