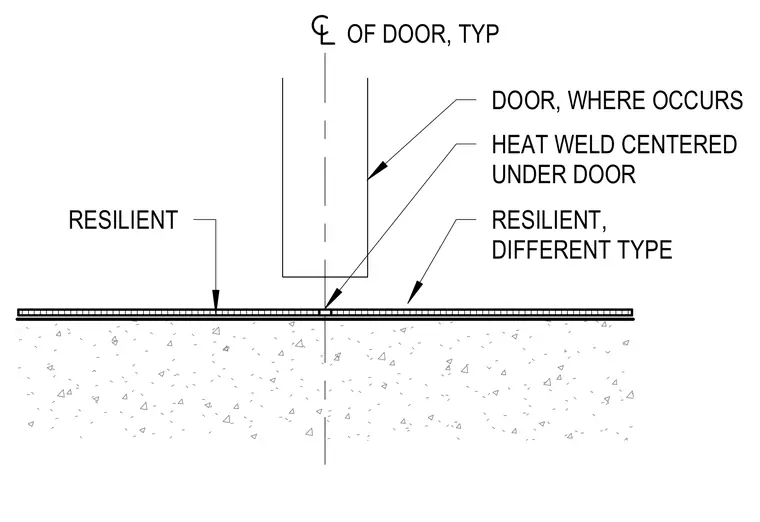

Resilient flooring transitions between two different flooring types directly under the centerline of a typical door. A heat weld is centered under the door threshold joining the resilient materials. The flooring is installed over a concrete slab substrate.
OF DOOR, TYP RESILIENT DOOR, WHERE OCCURS RESILIENT, DIFFERENT TYPE HEAT WELD CENTERED UNDER DOOR
