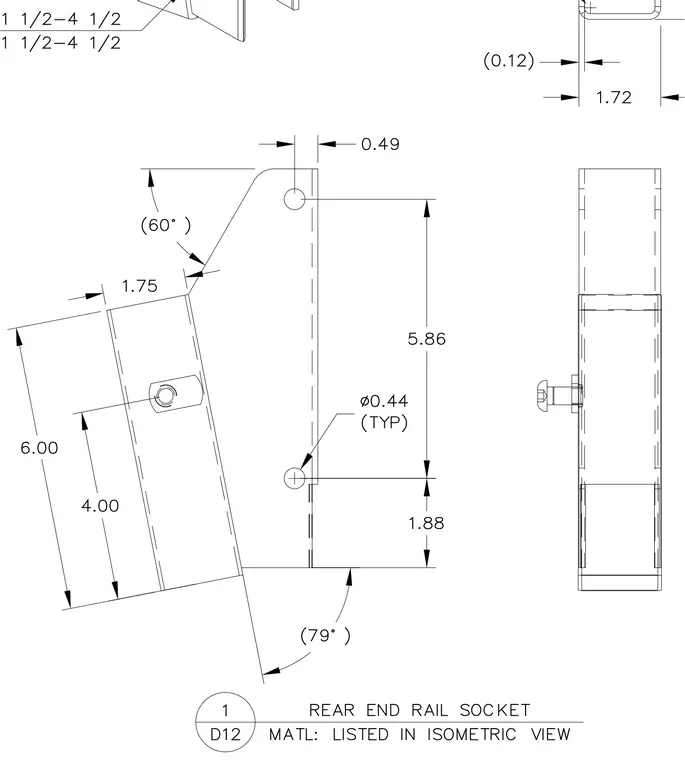

This fabrication detail provides dimensions, angles, and fastener locations for a rear end rail socket component. The part features a main vertical body with a 5.86-inch hole spacing and 0.44-inch diameter typical fastener holes. Angled cuts of 60 degrees and 79 degrees shape the mounting profile, with an overall height of 6.00 inches and material thickness of 0.12 inches. A side elevation shows a threaded fastener installed through the housing wall. Material specifications are referenced to the isometric view.
(79°) (60°) 6.00 1.88 5.86 0.49 ∅0.44 (TYP) 4.00 1.75 (0.12) 1.72 1 1/2-4 1/2 1 1/2-4 1/2 REAR END RAIL SOCKET 1 D12 MATL: LISTED IN ISOMETRIC VIEW T - I (L w 1 | I I I 7 -
