An egress stair guardrail and handrail assembly features a 1 1/2-inch diameter steel tube post supported by a 1/2-inch diameter bent steel bar handrail support welded to the vertical post with a 3/4-inch centerline radius. A 2 1/2-inch steel bar rail runs below the handrail. A field-applied 1/2-inch wide photoluminescent marking is included on the assembly. Pickets are added as required to maintain maximum clearance requirements.

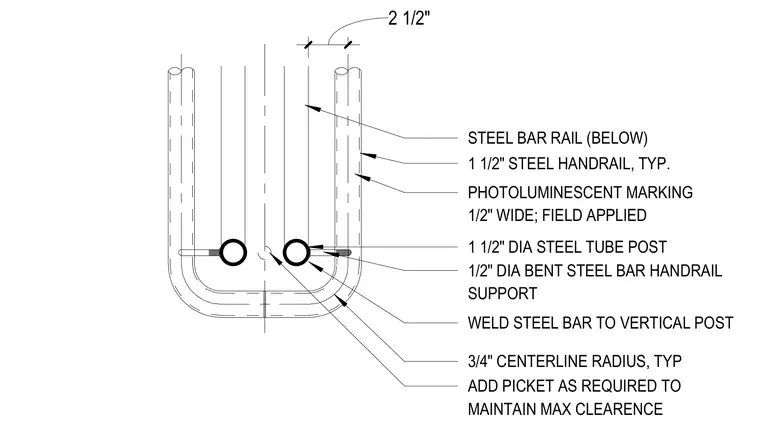

2 1/2" STEEL BAR RAIL (BELOW) 1 1/2" STEEL HANDRAIL, TYP. PHOTOLUMINESCENT MARKING 1/2" WIDE; FIELD APPLIED 1 1/2" DIA STEEL TUBE POST 1/2" DIA BENT STEEL BAR HANDRAIL SUPPORT WELD STEEL BAR TO VERTICAL POST 3/4" CENTERLINE RADIUS, TYP ADD PICKET AS REQUIRED TO MAINTAIN MAX CLEARENCE
