Architectural · A-C2BG6

ACP Soffit and Trim at Reception Check-In

Materials

Steel Masonry / CMU Aluminum Metal (misc.)

Elements

Ceilings Floors / Slabs Connections / Plates

About this detail

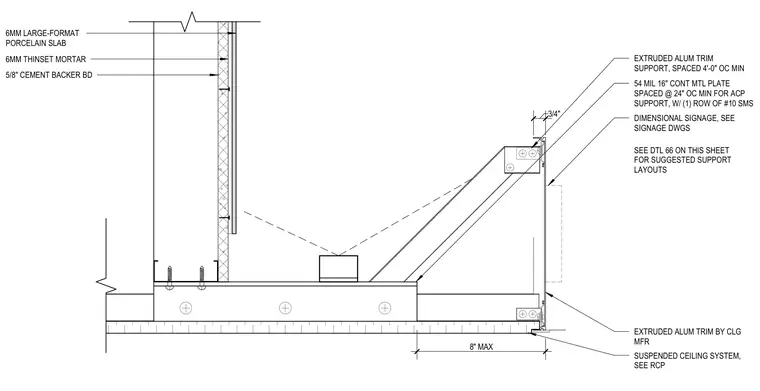

An eight-inch maximum extruded aluminum trim by the ceiling manufacturer forms the soffit edge, supported by fifty-four mil continuous metal plates spaced at twenty-four inches on center with one row of number ten sheet metal screws. The vertical wall assembly receives five-eighths inch cement backer board, six millimeters of thinset mortar, and six-millimeter large-format porcelain slab panels. Dimensional signage mounts to the aluminum composite panel soffit per the signage drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
