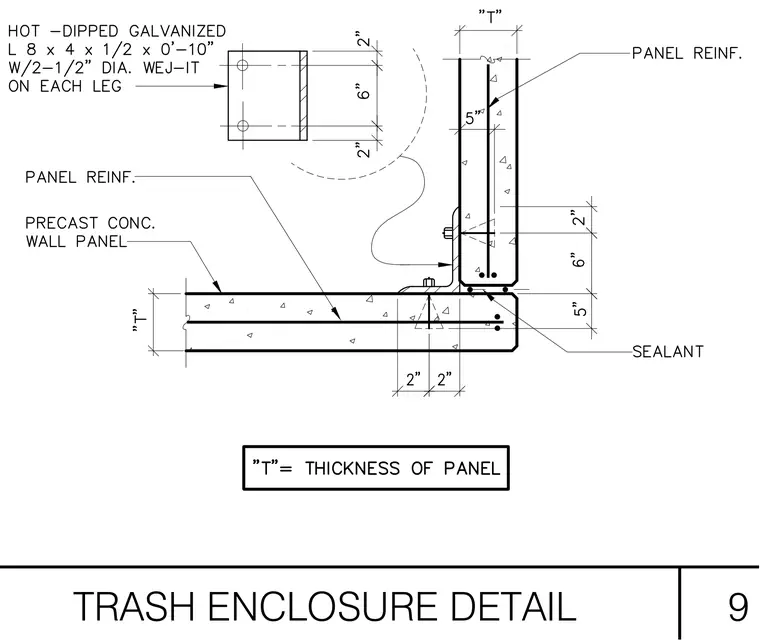

Precast concrete wall panels intersect at a ninety-degree corner with internal panel reinforcement and a joint sealed at the exterior corner. A hot-dipped galvanized angle measuring L 8 x 4 x 1/2 by zero feet ten inches long connects the panels with two one-half inch diameter Wej-It wedge anchors in each leg. Panel thickness is designated as "T" with corresponding reinforcement placement.
